Robotic Bending Cell
Returns a list of

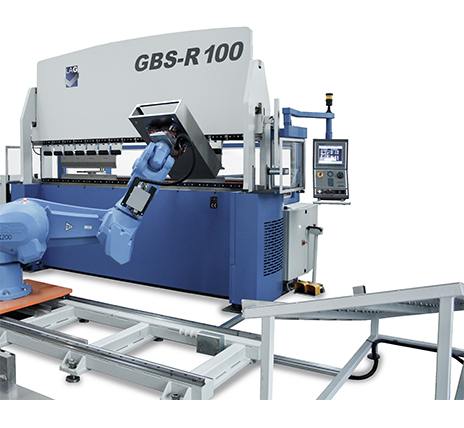

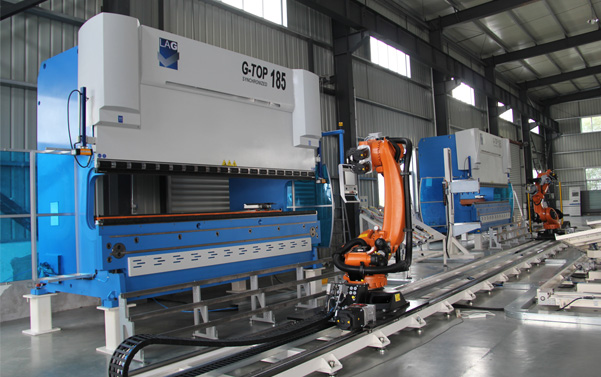

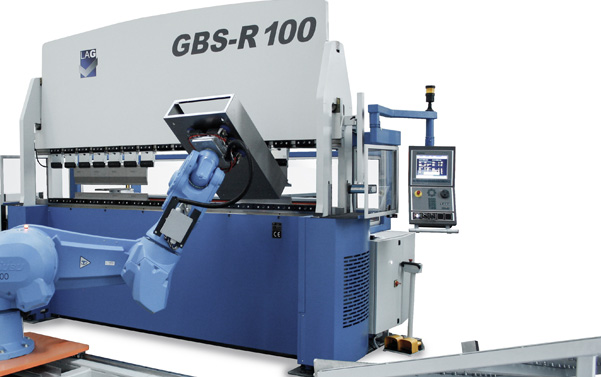

The automatic bending unit of LAG manipulator adopts the technology imported from Italy to achieve the automatic feeding and blanking as well as sorting and stacking. The automatic mold change technology of manipulator guarantees that the small-lot and multi-variety production has the same excellent efficiency as the scale production.
The details show

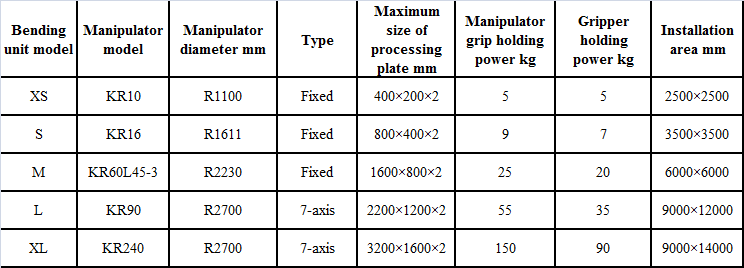

Detailed parameters
1.Development of the bending products (profile procedure) needed by customers
2.Separating unit of customized magnetic sheet metal LWH: 155*77*245mm
3. Positioning table LWH: 2700*1215*800mm

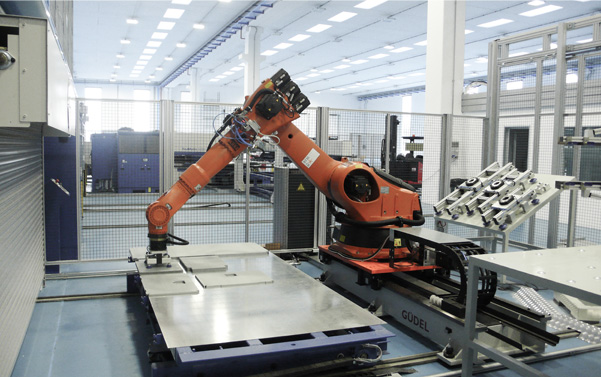

4. Axis servo carrying manipulator X-Y-Z: 3670-2645-1100mm
5. Axis manipulator and rail Kuka series
6. Turnover mechanism of sheet metal 2500*1500 mm

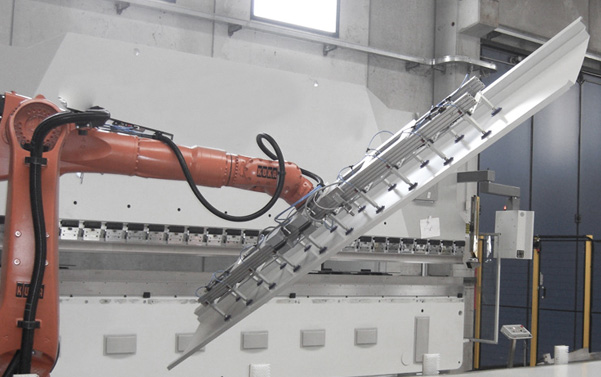

7. Gripper
Gripper G1LWH: 150*30*120mm
Gripper G2LWH: 150*30*120mm
Gripper G3LWH: 760*380*120mm
Gripper G4LWH: 760*380*120mm
GRIPPER ATC G5250*275 mm / 5S
8. Customized gripper library
9.Automatic mold library LH: 4000*680mm/3 layers include
Automatic replacement of upper die ATC-ADAPTOR BIU20-100 mm
Automatic replacement of lower die ATC-ADAPTOR OZU20-100 mm
10. Security defending system
11. Design and installation of general control electrical cabinets
12. Integration of production management software and PLC software
13. Remote control and field monitoring system

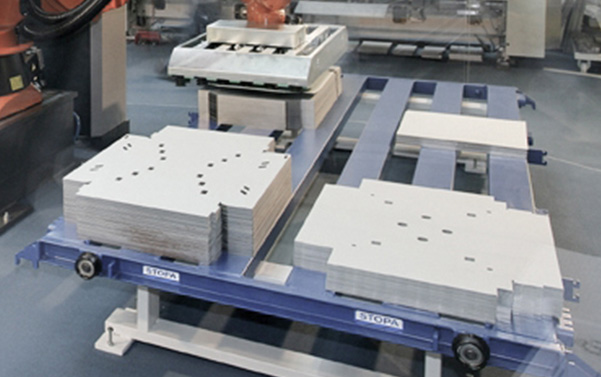

14. Stacking device
15. Automatic stacking programming
